Matters

Matter Types

Smokeball comes with a range of pre-configured matter types for different areas of law. These are provided by Smokeball’s internal content team and are not user editable. A Matter Type defines what information can be saved to the matter, relevant to that area of law and state / location.

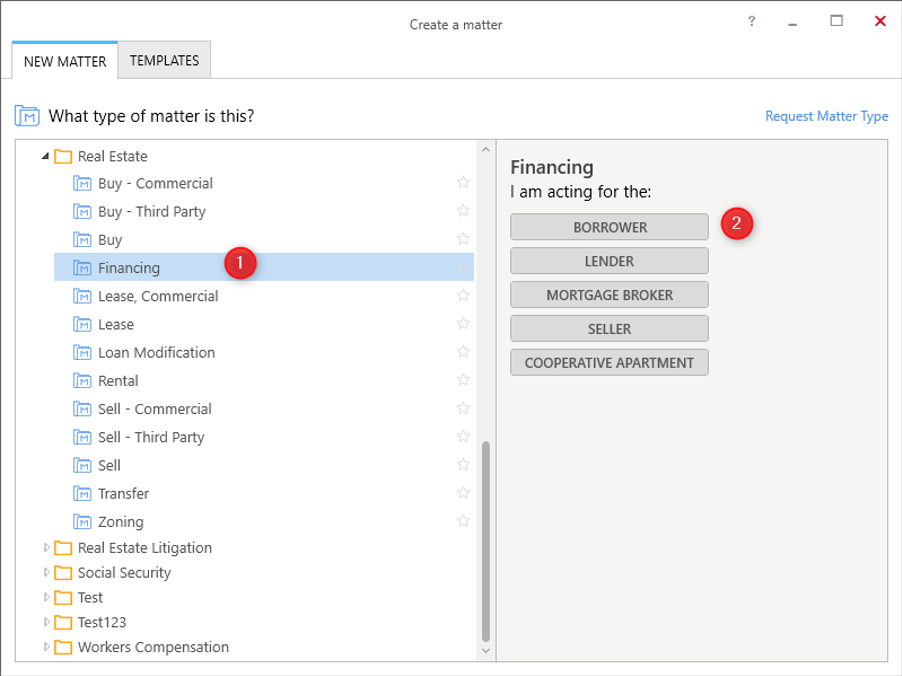

When creating a matter in Smokeball we can see

A list of Matter Types. Here, Financing is a matter type, under the Real Estate category.
Representative options for the Financing matter type. This specifies who the Smokeball firm is acting for. In other words, who is their client.

Getting a Matter Type

curl --request GET "https://api.smokeball.com/mattertypes" \
    --header "x-api-key: Y2xpZW50X2lkOmNsaWV" \
    --header "Authorization: Bearer Y2xpZW50X2lkOmNsaWV"

{
  "method": "get",
  "url": "https://api.smokeball.com/mattertypes",
  "query": {
    "Location": "IL",
  }
}

Response

HTTP/1.1 200 OK
Content-Type: application/json

{
  "href": "https://api.smokeball.com/mattertypes",
  "offset": 0,
  "limit": 500,
  "size": 18,
  "first": {
    "href": "https://api.smokeball.com/mattertypes"
  },
  "value": [
    {
      "href": "https://api.smokeball.com/mattertypes/8aca3574-aecb-4a6f-991d-680861bece1d_il",
      "id": "8aca3574-aecb-4a6f-991d-680861bece1d_IL",
      "versionId": "32e86c38-534d-4362-95a1-f5c287a8d4b7",
      "name": "Financing",
      "category": "Real Estate",
      "representativeOptions": [
        "Borrower",
        "Lender",
        "MortgageBroker",
        "Seller",
        "CooperativeApartment"
      ],
      "location": "IL",
      "deleted": false
    },
    {
      "href": "https://api.smokeball.com/mattertypes/2d5aca9b-9469-44d4-8616-766a864432aa",
      "id": "2d5aca9b-9469-44d4-8616-766a864432aa",
      "versionId": "1410cfea-723e-4514-8901-c92dab1bd5f2",
      "name": "Buy",
      "category": "Real Estate",
      "representativeOptions": [
        "Buyer"
      ],
      "location": "IL",
      "deleted": false
    },
    ...
  ]
}

Here the important information to note is the id and representativeOptions of the matter type. We’ll need those when creating a matter.

Contacts

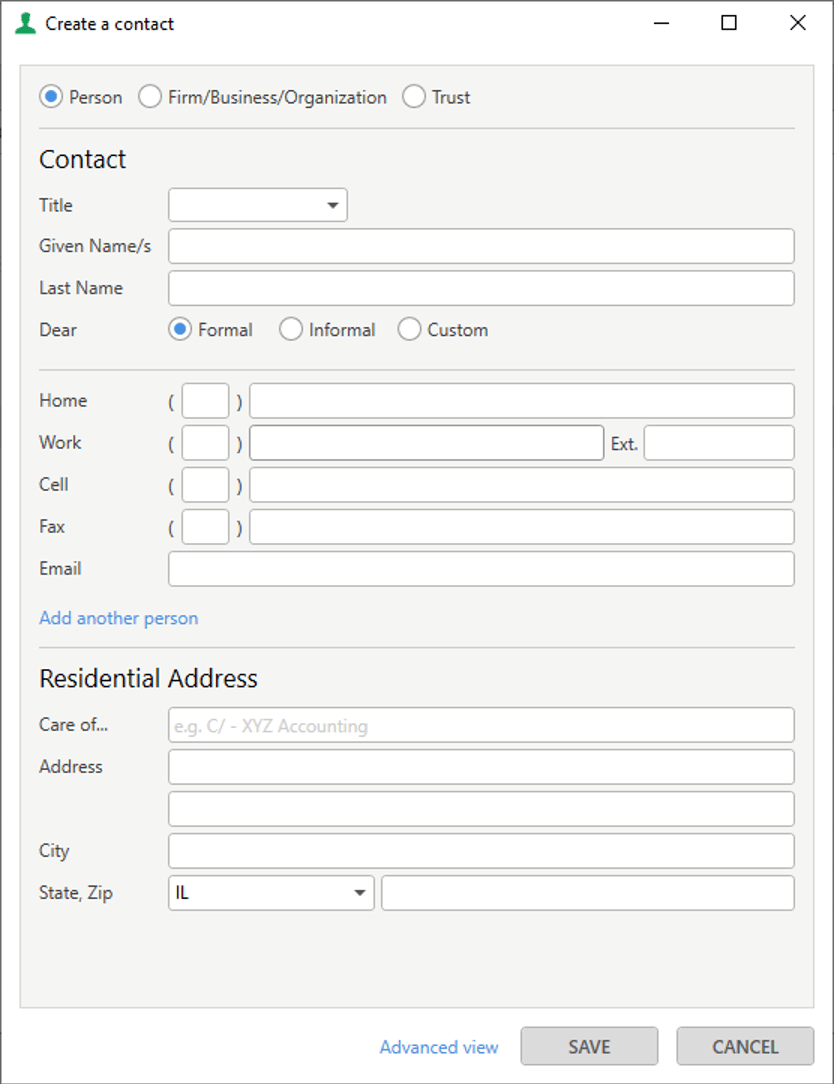

In order to successfully create a matter, we’re going to need to provide one or more contacts that are clients and/or other-sides (if applicable). In Smokeball’s desktop app you can create a contact as a Person, Firm/Business/Organization or Trust. Currently, the API supports the following contact types

Person
Company

Creating contacts

To create a client contact you can make the following request which would create a person called ‘Test Contact’.

curl --request POST "https://api.smokeball.com/contacts" \
    --header "x-api-key: Y2xpZW50X2lkOmNsaWV" \
    --header "Authorization: Bearer Y2xpZW50X2lkOmNsaWV" \
    --header "Content-Type: application/json" \
    --data-raw '{"person":{"firstName":"Test","lastName":"Contact","email":"test@gmail.com"}}'

{
  "method": "POST",
  "url": "https://api.smokeball.com/contacts",
  "headers": {
    "Content-Type": "application/json"
  },
  "body": "{\n  \"person\": {\n    \"firstName\": \"Test\",\n    \"lastName\": \"Contact\",    \n    \"email\": \"test@gmail.com\",\n  }\n}\n\n"
}

To create an other-side contact you can make the following request which would create a person called ‘Other Contact’.

curl --request POST "https://api.smokeball.com/contacts" \
    --header "x-api-key: Y2xpZW50X2lkOmNsaWV" \
    --header "Authorization: Bearer Y2xpZW50X2lkOmNsaWV" \
    --header "Content-Type: application/json" \
    --data-raw '{"person":{"firstName":"Other","lastName":"Contact","email":"other@gmail.com"}}'

{
  "method": "POST",
  "url": "https://api.smokeball.com/contacts",
  "headers": {
    "Content-Type": "application/json"
  },
  "body": "{\n  \"person\": {\n    \"firstName\": \"Other\",\n    \"lastName\": \"Contact\",    \n    \"email\": \"other@gmail.com\",\n  }\n}\n\n"
}

Response

HTTP/1.1 202 ACCEPTED
Content-Type: application/json

{
  "id": "9a9ce552-6bee-45e4-8eb1-afe2c18c489f",
  "href": "https://api.smokeball.com/contacts/9a9ce552-6bee-45e4-8eb1-afe2c18c489f"
}

Take note of the Contact’s id returned in the response, we’ll need that when creating a matter. Alternatively, if the contact already exists in Smokeball, you can query it to find it’s id.

Tip
When creating a contact you can pass in an externalSystemId if you want to store your own reference id with this contact.

Staff

In Smokeball, staff can be assigned to a lead as the Attorney Responsible or the Person Assisting. The lead list can then be filtered by Attorney responsible, etc.

If you want to specify the Attorney Responsible or Person Assisting when creating a lead via the API, then we will first need to retrieve the staff member’s id.

curl --request GET "https://api.smokeball.com/staff" \
    --header "x-api-key: Y2xpZW50X2lkOmNsaWV" \
    --header "Authorization: Bearer Y2xpZW50X2lkOmNsaWV"

{
  "method": "get",
  "url": "https://api.smokeball.com/staff"
}

Response

HTTP/1.1 200 OK
Content-Type: application/json

{
  "href": "https://api.smokeball.com/staff",
  "size": 28,
  "first": {
    "href": "https://api.smokeball.com/staff"
  },
  "value": [

    {
      "href": "https://api.smokeball.com/staff/66f7fa24-bb03-4d89-ac28-e19620cc1e45",
      "id": "66f7fa24-bb03-4d89-ac28-e19620cc1e45",
      "versionId": "cfdbb798-1f2e-4355-87bc-620cbc62acc2",
      "firstName": "Test",
      "lastName": "Staff",
      "phone": {
        "number": "200518540309"
      },
      "cell": {},
      "email": "teststaff@gmail.com",
      "avatar": "https://toolbar.smokeball.com/FirmManagement/Firm/RedirectToStaffProfileImageUrl?accountId=2f3143de-2bfe-4742-9e9c-7c16b48bdef7&staffId=66f7fa24-bb03-4d89-ac28-e19620cc1e45",
      "former": false,
      "enabled": true
    },

    {
      "href": "https://api.smokeball.com/staff/c85d28cb-a760-4627-aa59-0a853c2e65ed",
      "id": "c85d28cb-a760-4627-aa59-0a853c2e65ed",
      "versionId": "23dbdc50-6171-4408-8150-413cb293a249",
      "title": "",
      "firstName": "Hunter",
      "lastName": "Steele",
      "email": "hunter@gmail.com",
      "avatar": "https://toolbar.smokeball.com/FirmManagement/Firm/RedirectToStaffProfileImageUrl?accountId=2f3143de-2bfe-4742-9e9c-7c16b48bdef7&staffId=c85d28cb-a760-4627-aa59-0a853c2e65ed",
      "former": false,
      "enabled": false
    },
    ...
  ]
}

Creating a matter

Now we have everything we need to create a matter.

curl --request POST "https://api.smokeball.com/matters" \
    --header "x-api-key: Y2xpZW50X2lkOmNsaWV" \
    --header "Authorization: Bearer Y2xpZW50X2lkOmNsaWV" \
    --header "Content-Type: application/json" \
    --data-raw '{"number":"Matter-001","matterTypeId":"8aca3574-aecb-4a6f-991d-680861bece1d_IL","clientIds":["9a9ce552-6bee-45e4-8eb1-afe2c18c489f"],"otherSidesIds":["52f551d9-6c1c-44d1-8bf7-ddce5a856134"],"clientRole":"Borrower","otherSideRole":"Lender","description":"Created via API","status":"Open","dateOpened":"2020-05-20T04:20:55.035Z","personResponsibleStaffId":"c85d28cb-a760-4627-aa59-0a853c2e65ed","personAssistingStaffId":"66f7fa24-bb03-4d89-ac28-e19620cc1e45","isLead":false}'

{
  "method": "POST",
  "url": "https://api.smokeball.com/matters",
  "headers": {
    "Content-Type": "application/json"
  },
  "body": {
    "number": "Matter-001",
    "matterTypeId": "8aca3574-aecb-4a6f-991d-680861bece1d_IL",
    "clientIds": [
      "9a9ce552-6bee-45e4-8eb1-afe2c18c489f"
    ],
    "otherSidesIds": [
      "52f551d9-6c1c-44d1-8bf7-ddce5a856134"
    ],
    "clientRole": "Borrower",
    "otherSideRole": "Lender",
    "description": "Created via API",
    "status": "Open",
    "dateOpened": "2020-05-20T04:20:55.035Z",
    "personResponsibleStaffId": "c85d28cb-a760-4627-aa59-0a853c2e65ed",
    "personAssistingStaffId": "66f7fa24-bb03-4d89-ac28-e19620cc1e45",
    "isLead": false
  }
}

string

required

Bearer token for user authentication. Format: Bearer YOUR_ACCESS_TOKEN

string

required

Must be application/json for this endpoint.

string

The matter number.Can be left blank.

string

required

The matter type identifier. Example: 8aca3574-aecb-4a6f-991d-680861bece1d_IL (the id we found earlier).

array[string]

required

Contact Ids associated with the matter. Minimum: 1 client required.Example: ["9a9ce552-6bee-45e4-8eb1-afe2c18c489f"]

string

The client’s role in the Matter (e.g., “Borrower”, “Lender”).If left blank, the default role associated to the matter type will be used.Example: "Borrower"

string

The other side’s role in the Matter (e.g., “Borrower”, “Lender”).Example: "Borrower"

string

Description of the matter.Example: "Created via API"

string

Initial matter status (typically “Open”).Can be Open, Pending, Closed, Deleted or CancelledExample: "Open"

string

Lead creation date in ISO 8601 format (this can be backdated).Example: "2020-05-20T04:20:55.035Z"

string

Staff Id of the primary responsible staff member (optional).Example: "c85d28cb-a760-4627-aa59-0a853c2e65ed"

string

Staff Id of the assisting staff member (optional).Example: "66f7fa24-bb03-4d89-ac28-e19620cc1e45"

boolean

Whether the matter is marked as a lead (default: false). Example: true

Response

HTTP/1.1 202 ACCEPTED
Content-Type: application/json

{
  "id": "51cefb72-6247-4ca2-8926-5d14d65f7cb9",
  "href": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9"
}

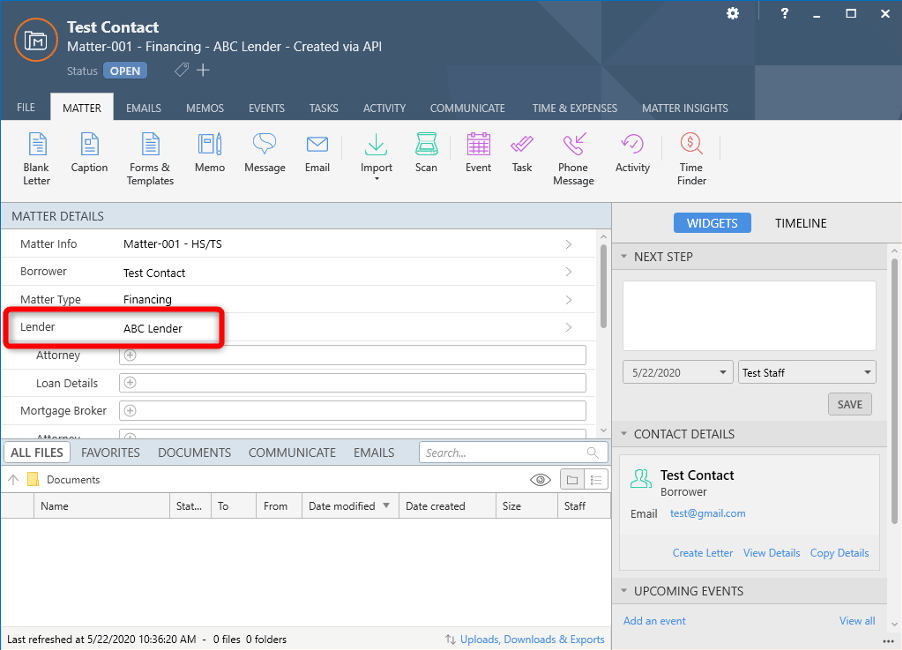

The matter is now shown in Smokeball:

Retrieving matters

Retrieving a matter

curl --request GET "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9" \
    --header "x-api-key: Y2xpZW50X2lkOmNsaWV" \
    --header "Authorization: Bearer Y2xpZW50X2lkOmNsaWV"

{
  "method": "get",
  "url": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9"
}

This is an enhanced version of the endpoint which combines the following APIs:

Matters API
MatterItems API
Roles API
Relationships API

Response

HTTP/1.1 200 OK
Content-Type: application/json

{
  "href": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9",
  "id": "51cefb72-6247-4ca2-8926-5d14d65f7cb9",
  "versionId": "638138489289266248",
  "number": "Matter-001",
  "matterType": {
    "id": "8aca3574-aecb-4a6f-991d-680861bece1d_IL",
    "href": "https://api.smokeball.com/mattertypes/8aca3574-aecb-4a6f-991d-680861bece1d_IL",
    "rel": "MatterTypes"
  },
  "clients": [
    {
      "id": "9a9ce552-6bee-45e4-8eb1-afe2c18c489f",
      "href": "https://api.smokeball.com/contacts/9a9ce552-6bee-45e4-8eb1-afe2c18c489f",
      "rel": "Contacts"
    }
  ],
  "otherSides": [
    {
      "id": "52f551d9-6c1c-44d1-8bf7-ddce5a856134",
      "href": "https://api.smokeball.com/contacts/52f551d9-6c1c-44d1-8bf7-ddce5a856134",
      "rel": "Contacts"
    }
  ],
  "title": "Matter-001 - Smith - Sale - Jones",
  "description": "Created via API",
  "status": "Open",
  "personResponsible": {
    "id": "c85d28cb-a760-4627-aa59-0a853c2e65ed",
    "href": "https://api.smokeball.com/staff/c85d28cb-a760-4627-aa59-0a853c2e65ed",
    "rel": "Staff"
  },
  "personAssisting": {
    "id": "66f7fa24-bb03-4d89-ac28-e19620cc1e45",
    "href": "https://api.smokeball.com/staff/66f7fa24-bb03-4d89-ac28-e19620cc1e45",
    "rel": "Staff"
  },
  "openedDate": "2023-03-08T04:18:22.3044791Z",
  "isLead": false,
  "items": {
    "borrowers": [
      {
        "id": "5c65358d-1502-463c-9464-f36f21c7e610",
        "type": "role",
        "name": "Borrower",
        "contact": {
          "id": "9a9ce552-6bee-45e4-8eb1-afe2c18c489f",
          "href": "https://api.smokeball.com.au/contacts/9a9ce552-6bee-45e4-8eb1-afe2c18c489f",
          "rel": "Contacts"
        },
        "subItems": {
          "solicitors": [
            {
              "id": "4a31c76f-0952-4069-8259-840cd6106246",
              "type": "role",
              "contact": {
                "id": "MyFirm"
              },
              "name": "Solicitor",
            }
          ],
          "relationshipDetails": [
            {
              "id": "71b597c3-c1dd-4fe8-91c1-3c731a1e4394",
              "href": "https://api.smokeball.com.au/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts/71b597c3-c1dd-4fe8-91c1-3c731a1e4394",
              "rel": "layout",
              "type": "layout"
            }
          ]
        }
      }
    ],
    "lenders": [
      {
        "id": "f794090d-183e-462a-9654-930d64a5f882",
        "name": "Lender",
        "contact": {
          "id": "71b597c3-c1dd-4fe8-91c1-3c731a1e4394",
          "href": "https://api.smokeball.com.au/contacts/52f551d9-6c1c-44d1-8bf7-ddce5a856134",
          "rel": "Contacts"
        },
        "subItems": {
          "solicitors": [
          ]
        }
      }
    ],
    "marriageDetails": [
      {
        "id": "0ea6eb6e-b078-4de3-8639-26c99ec9c32c",
        "href": "https://api.smokeball.com.au/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts/0ea6eb6e-b078-4de3-8639-26c99ec9c32c",
        "rel": "layout",
        "type": "layout",
        "subItems": {
          "solicitors": [
            {
              "id": "5c65358d-1502-463c-9464-f36f21c7e610",
              "type": "role",
              "name": "Solicitor",
              "contact": {
                "id": "ec499947-9d3d-442a-b431-05c8ee280687",
                "href": "https://api.smokeball.com.au/8contacts/ec499947-9d3d-442a-b431-05c8ee280687",
                "rel": "Contacts"
              }
            }
          ]
        }
      }
    ]
  }
}

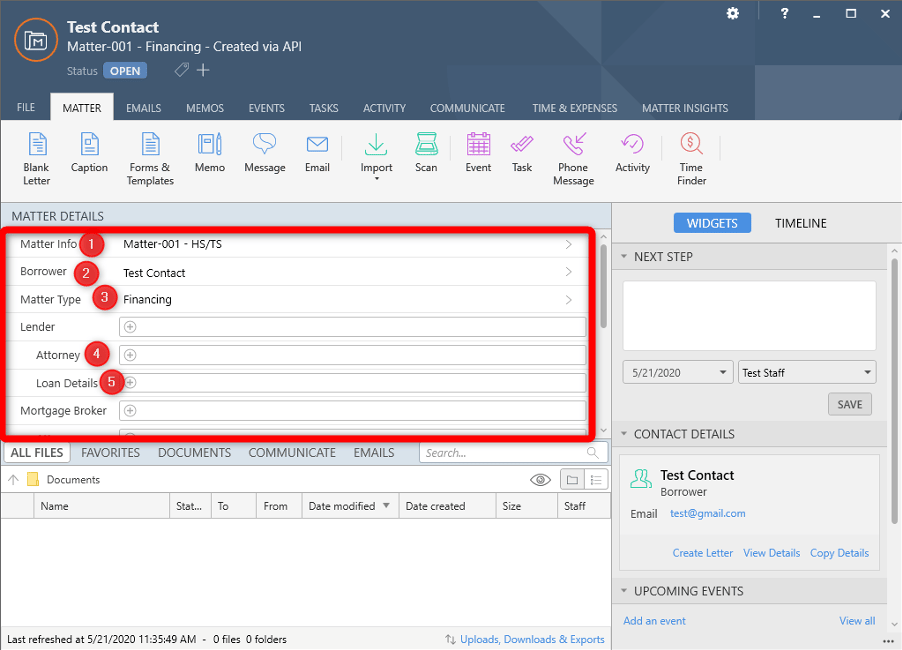

Most of this information is unchanged from what we passed in when creating the matter. You’ll notice that the clients, other-sides, staff and matter type properties have been expanded as links to resources with more information. There is also the items collection which we’ll explore in more detail next.

Retrieving multiple matters

This endpoint can be used to sort, filter and retrieve one or more matters.

curl --request GET "https://api.smokeball.com/matters" \
    --header "x-api-key: Y2xpZW50X2lkOmNsaWV" \
    --header "Authorization: Bearer Y2xpZW50X2lkOmNsaWV"

{
  "method": "get",
  "url": "https://api.smokeball.com/matters"
}

The endpoint returns a paginated list of matters based on the action/filter paramaters specified in the request.

number

Use this to limit number of records to be returned. Defaults to 500.

number

Use this to set offset for the records to be returned.

string

Use this to filter by matter type identifier.

string

Use this to filter by the contact identifier.

string

Use this to filter by current status of the matter. Possible values: Open, Pending, Closed, Deleted or Cancelled

boolean

Boolean flag to restrict search to Leads.

string

Use this to filter by matters updated since a specified time (.net ticks representation of the UTC datetime).

string

Use this to provide comma separated list of sort fields. Expected format asc/desc(field). Sort fields currently supported: Status, LastUpdated - e.g. asc(Status), desc(LastUpdated)

string

Use this to provide comma separated list of optional fields to include in the result. Optional fields currently supported: Items.

The matter items field is not returned by default. Use the fields in the request to include this in the result.

Response

HTTP/1.1 202 ACCEPTED
Content-Type: application/json

{
    "href": "https://api.smokeball.com.au/matters",
    "offset": 0,
    "limit": 100,
    "size": 1396,
    "first": {
        "href": "https://api.smokeball.com.au/matters?limit=100",
        "rel": "collection"
    },
    "next": {
        "href": "https://api.smokeball.com.au/matters?limit=100&offset=100",
        "rel": "collection"
    },
    "last": {
        "href": "https://api.smokeball.com.au/matters?limit=100&offset=1300",
        "rel": "collection"
    },
    "value": [
        {
            "href": "https://api.smokeball.com.au/matters/04db8d78-f222-42de-b3d6-10809642402e",
            "id": "04db8d78-f222-42de-b3d6-10809642402e",
            "versionId": "638193848837974931",
            "title": "Company Incorporation",
            "matterType": {
                "name": "Company Incorporation",
                "id": "0d157e91-f3e1-4161-ae7d-03e9c23be912_NSW",
                "href": "https://api.smokeball.com.au/mattertypes/0d157e91-f3e1-4161-ae7d-03e9c23be912_NSW",
                "rel": "MatterTypes"
            },
            "clients": [],
            "otherSides": [],
            "status": "Open",
            "openedDate": "2017-08-09T22:01:27.373097Z",
            "isLead": false,
            "clientIds": [],
            "otherSideIds": [],
            "items": {}
        },
        ...
        ...
    ]
}

Matter Items

A matter can contain various items and sub items that store hierarchical data relevant to that area of law.

The matter items list is ordered as follows:

Matter Info
Borrower (Client)
- Client’s Attorney - this is always the Smokeball firm. This relationship is hidden in the desktop UI but can be seen in the API.
Matter Type
Lender (Other Side)
- Other Side’s Attorney
Other Roles, Relationships and Layouts

Matter sub items are shown indented under the matter item. Here Lender is a matter item, and Attorney and Loan Details are its subitems. Here’s an example request to GET the Matter Items:

curl --request GET "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/items" \
    --header "x-api-key: Y2xpZW50X2lkOmNsaWV" \
    --header "Authorization: Bearer Y2xpZW50X2lkOmNsaWV"

{
  "method": "get",
  "url": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/items"
}

Response

HTTP/1.1 200 OK
Content-Type: application/json

{
  "versionId": "9843e3cf-9720-4ac5-94cf-1b265c5e54d5",
  "items": [
    {
      "href": "/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/info",
      "name": "Matter Info",
      "index": 0,
      "visible": true
    },
    {
      "href": "/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/roles/441225f5-0803-412b-be45-c81fb893231f",
      "id": "441225f5-0803-412b-be45-c81fb893231f",
      "name": "Borrower",
      "index": 0,
      "visible": true,
      "subItems": [
        {
          "href": "/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/roles/441225f5-0803-412b-be45-c81fb893231f/relationships/04f40670-898c-4e47-9565-df8cca2569c8",
          "id": "04f40670-898c-4e47-9565-df8cca2569c8",
          "name": "Attorney",
          "index": 0,
          "visible": true
        }
      ]
    },
    {
      "href": "/mattertypes/8aca3574-aecb-4a6f-991d-680861bece1d",
      "name": "Matter Type",
      "index": 0,
      "visible": true
    },
    {
      "href": "/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/roles/e8ea6745-399b-4234-8d62-5dd891e0ae9d",
      "id": "e8ea6745-399b-4234-8d62-5dd891e0ae9d",
      "name": "Co-Counsel",
      "index": 0,
      "visible": false
    },
    {
      "href": "/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/roles/f377da1c-8f48-40cd-8d23-0c3b9483c6b1",
      "id": "f377da1c-8f48-40cd-8d23-0c3b9483c6b1",
      "name": "Lender",
      "index": 0,
      "visible": true,
      "subItems": [
        {
          "href": "/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/roles/f377da1c-8f48-40cd-8d23-0c3b9483c6b1/relationships/31b6e000-9f39-47d4-8ee8-9fed5f6901f0",
          "id": "31b6e000-9f39-47d4-8ee8-9fed5f6901f0",
          "name": "Attorney",
          "index": 0,
          "visible": true
        },
        {
          "name": "Loan Details",
          "index": 0,
          "visible": true
        }
      ]
    },
    {
      "href": "/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/roles/429371ae-a577-40a0-bf4d-ed157764ed6c",
      "id": "429371ae-a577-40a0-bf4d-ed157764ed6c",
      "name": "Mortgage Broker",
      "index": 0,
      "visible": true,
      "subItems": [
        {
          "href": "/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/roles/429371ae-a577-40a0-bf4d-ed157764ed6c/relationships/bbf42ca4-cf70-48e2-a737-86e1f196ebc2",
          "id": "bbf42ca4-cf70-48e2-a737-86e1f196ebc2",
          "name": "Attorney",
          "index": 0,
          "visible": true
        }
      ]
     },
    ...
}

Where available, the matter item will have a link to the relevant resource containing additional information.

Some matter items can be hidden on the matter by default. This is usually done for roles that aren’t common on the matter. They are still exposed in the api as “visible: false”. Currently the visibility can only be changed in the Smokeball desktop app under Matter Settings (1).

There are different types of matter items and sub items, including:

Roles and Relationships

A contact on a matter will be assigned to a specific role or relationship, based on how they relate to the matter. For example, in the above image, Test Contact is assigned to the Borrower role (2). By convention, the first Role in the list is the firm’s client. The client role has an Attorney relationship that links to the Smokeball Firm (hidden in the Smokeball UI) Contacts can also be related to other contacts on the matter. For example in the above image, Lender is a Role with an Attorney relationship (3). This attorney acts for this specific Lender. There could be other Lenders relationships on this matter that are related to other roles (not shown in image) Roles and relationships can be set in the API.

Layouts

For a comprehensive guide to working with layouts including all field types, CRUD operations, and best practices, see the Layouts tutorial.

Layouts are data entry screens that are tailored to the area of law. In this example there is a Loan Details layout (4) that would store information about that Lender’s loan. A layout can either be a sub item linked to a matter item (e.g. Loan Details as shown here) or a matter item itself (e.g. Property Details, not shown). Following is a typical flow to get/set layout data.

Get the layout design ID and currently set data by retrieving all the layout matter items

curl --request GET "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts" \
    --header "x-api-key: Y2xpZW50X2lkOmNsaWV" \
    --header "Authorization: Bearer Y2xpZW50X2lkOmNsaWV"

{
  "method": "get",
  "url": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts"
}

or a single layout matter item.

curl --request GET "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts/60efd655-cd1a-42cd-a170-a228cc09b5b1" \
    --header "x-api-key: Y2xpZW50X2lkOmNsaWV" \
    --header "Authorization: Bearer Y2xpZW50X2lkOmNsaWV"

{
  "method": "get",
  "url": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts/60efd655-cd1a-42cd-a170-a228cc09b5b1"
}

Example response:

HTTP/1.1 200 OK
Content-Type: application/json

{
    "id": "60efd655-cd1a-42cd-a170-a228cc09b5b1",
    "href": "https://api.smokeball.com/matters/3f0cfc3d-be5d-4a70-88ac-e099a800d46d/layouts/60efd655-cd1a-42cd-a170-a228cc09b5b1",
    "itemId": "60efd655-cd1a-42cd-a170-a228cc09b5b1",
    "index": 0,
    "layoutDesign": {
        "id": "f2654144-ab55-45ec-9852-489a5caaa111",
        "href": "https://api.smokeball.com/layouts/f2654144-ab55-45ec-9852-489a5caaa111",
        "rel": "Layouts"
    },
    "values": [],
    "events": []
}

Retrieve the full list of fields for the given layout design.

curl --request GET "https://api.smokeball.com/layouts/f2654144-ab55-45ec-9852-489a5caaa111" \
    --header "x-api-key: Y2xpZW50X2lkOmNsaWV" \
    --header "Authorization: Bearer Y2xpZW50X2lkOmNsaWV"

{
  "method": "get",
  "url": "https://api.smokeball.com/layouts/f2654144-ab55-45ec-9852-489a5caaa111"
}

Example response:

HTTP/1.1 200 OK
Content-Type: application/json

{
    "id": "f2654144-ab55-45ec-9852-489a5caaa111",
    "href": "https://api.smokeball.com/layouts/f2654144-ab55-45ec-9852-489a5caaa111",
    "fields": [
        {
            "name": "Matter/SettlementNegotiations/SettlementNegotiationsDetails/Note",
            "type": "Text"
        },
        {
            "name": "Matter/SettlementNegotiations/SettlementNegotiationsDetails/OfferDate",
            "type": "DateTime"
        }
    ],
    "name": "Settlement Negotiations - Personal Injury"
}

Update the layout with new data values.

curl --request PATCH "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts/60efd655-cd1a-42cd-a170-a228cc09b5b1" \
    --header "x-api-key: Y2xpZW50X2lkOmNsaWV" \
    --header "Authorization: Bearer Y2xpZW50X2lkOmNsaWV" \
    --header "Content-Type: application/json" \
    --data-raw '{
        "values": [
            {
              "key": "Matter/SettlementNegotiations/SettlementNegotiationsDetails/Note",
              "value": "New note"
            }
        ]
    }'

{
  "method": "patch",
  "url": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts/60efd655-cd1a-42cd-a170-a228cc09b5b1",
  "headers": {
    "Content-Type": "application/json"
  },
  "body": {
    "values": [
      {
        "key": "Matter/SettlementNegotiations/SettlementNegotiationsDetails/Note",
        "value": "New note"
      }
    ]
  }
}

A field with type Role expects an ID of a role. The name of the role needs to be the same as the layout field (e.g. for a field with key Matter/CaseDetails/StandardCaseDetails/Judge expected role name is Judge).

A field with type DateTime expects a UTC date/time in ISO 8601 format (e.g. 2021-10-12T13:00:00.0000000Z).

Roles

To find out which contact is assigned to a role, we can get the role details:

curl --request GET "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/roles/441225f5-0803-412b-be45-c81fb893231f" \
    --header "x-api-key: Y2xpZW50X2lkOmNsaWV" \
    --header "Authorization: Bearer Y2xpZW50X2lkOmNsaWV"

{
  "method": "get",
  "url": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/roles/441225f5-0803-412b-be45-c81fb893231f"
}

Response

HTTP/1.1 200 OK
Content-Type: application/json

{
  "id": "441225f5-0803-412b-be45-c81fb893231f",
  "name": "Borrower",
  "contact": {
    "id": "9a9ce552-6bee-45e4-8eb1-afe2c18c489f",
    "href": "/contact/9a9ce552-6bee-45e4-8eb1-afe2c18c489f",
    "rel": "Contact"
  },
  "representatives": [],
  "relationships": [
    {
      "id": "04f40670-898c-4e47-9565-df8cca2569c8",
      "name": "Attorney",
      "contact": {
        "href": "/firm/",
        "rel": "Firm"
      },
      "representatives": []
    }
  ]
}

Here we can see the Borrower role has a contact assigned, and we can follow the link to the contact resource to find out more details. We can also see that there is an Attorney relationship that links to the Firm resource.

Setting a Role

In our example, the Lender role did not have a contact assigned. To set this, we first need to know the id / link to the role we want to update. This was retrieved earlier with the MatterItems api call:

curl --request GET "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/items" \
    --header "x-api-key: Y2xpZW50X2lkOmNsaWV" \
    --header "Authorization: Bearer Y2xpZW50X2lkOmNsaWV"

{
  "method": "get",
  "url": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/items"
}

Response

HTTP/1.1 200 OK
Content-Type: application/json

{
  "versionId": "9843e3cf-9720-4ac5-94cf-1b265c5e54d5",
  "items": [
    ...
    {
      "href": "/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/roles/f377da1c-8f48-40cd-8d23-0c3b9483c6b1",
      "id": "f377da1c-8f48-40cd-8d23-0c3b9483c6b1",
      "name": "Lender",
      "index": 0,
      "visible": true,
      "subItems": [
        {
          "href": "/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/roles/f377da1c-8f48-40cd-8d23-0c3b9483c6b1/relationships/31b6e000-9f39-47d4-8ee8-9fed5f6901f0",
          "id": "31b6e000-9f39-47d4-8ee8-9fed5f6901f0",
          "name": "Attorney",
          "index": 0,
          "visible": true
        },
        {
          "name": "Loan Details",
          "index": 0,
          "visible": true
        }
      ]
    },
    ...
}

Let’s say we’ve already created a contact called ‘ABC Lender’ with id dcafdb9e-e46d-4720-a3f8-638b3dd4ca38 and now we want to assign it to this matter in the Lender role

curl --request PUT "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/roles/f377da1c-8f48-40cd-8d23-0c3b9483c6b1" \
    --header "x-api-key: Y2xpZW50X2lkOmNsaWV" \
    --header "Authorization: Bearer Y2xpZW50X2lkOmNsaWV" \
    --header "Content-Type: application/json" \
    --data-raw '{
        "contactId": "dcafdb9e-e46d-4720-a3f8-638b3dd4ca38"
    }'

{
  "method": "PUT",
  "url": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/roles/f377da1c-8f48-40cd-8d23-0c3b9483c6b1",
  "headers": {
    "Content-Type": "application/json"
  },
  "body": {
    "contactId": "dcafdb9e-e46d-4720-a3f8-638b3dd4ca38"
  }
}

Response

HTTP/1.1 202 ACCEPTED
Content-Type: application/json

{
  "id": "f377da1c-8f48-40cd-8d23-0c3b9483c6b1",
  "href": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/roles/f377da1c-8f48-40cd-8d23-0c3b9483c6b1"
}

Updating a matter

There are two ways to update a matter.

Using PUT endpoint

This endpoint is similar to the endpoint used to create a new matter.

curl --request PUT "https://api.smokeball.com/matters/{matterId}" \
    --header "x-api-key: Y2xpZW50X2lkOmNsaWV" \
    --header "Authorization: Bearer Y2xpZW50X2lkOmNsaWV" \
    --header "Content-Type: application/json" \
    --data-raw '{
        "number": "Matter-001",
        "matterTypeId": "8aca3574-aecb-4a6f-991d-680861bece1d_IL",
        "clientIds": [
          "9a9ce552-6bee-45e4-8eb1-afe2c18c489f"
        ],
        "otherSidesIds": [
          "52f551d9-6c1c-44d1-8bf7-ddce5a856134"
        ]
    }'

{
  "method": "PUT",
  "url": "https://api.smokeball.com/matters/{matterId}",
  "headers": {
    "Content-Type": "application/json"
  },
  "body": {
    "number": "Matter-001",
    "matterTypeId": "8aca3574-aecb-4a6f-991d-680861bece1d_IL",
    "clientIds": [
      "9a9ce552-6bee-45e4-8eb1-afe2c18c489f"
    ],
    "otherSidesIds": [
      "52f551d9-6c1c-44d1-8bf7-ddce5a856134"
    ],
    "clientRole": "Borrower",
    "otherSideRole": "Lender",
    "description": "Updated via API",
    "status": "Open",
    "dateOpened": "2020-05-20T04:20:55.035Z",
    "personResponsibleStaffId": "c85d28cb-a760-4627-aa59-0a853c2e65ed",
    "personAssistingStaffId": "66f7fa24-bb03-4d89-ac28-e19620cc1e45",
    "isLead": false
  }
}

Response

HTTP/1.1 202 ACCEPTED
Content-Type: application/json

{
  "id": "51cefb72-6247-4ca2-8926-5d14d65f7cb9",
  "href": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9"
}

Limitations:

The matterTypeId field can only be modified when converting a Lead to a Matter.
The clientIds field cannot be modified.
The otherSideIds field cannot be modified.
The Matter cannot be converted back to Lead.

Using PATCH endpoint

This endpoint can be used to update specific properties and also supports updating matter items, roles and relationships.

curl --request PATCH "https://api.smokeball.com/matters/{matterId}" \
    --header "x-api-key: Y2xpZW50X2lkOmNsaWV" \
    --header "Authorization: Bearer Y2xpZW50X2lkOmNsaWV" \
    --header "Content-Type: application/json" \
    --data-raw '{
      "externalSystemId": "EXT123",
      "number": "AM-API-001",
      "matterTypeId": "0623643a-48a4-41d7-8c91-d35915b291cd_NSW",
      "description": "Matter description",
      "status": "Open",
      "openedDate": "2022-04-23T14:00:00Z",
      "personResponsibleStaffId": "526670af-acd8-401e-bc64-6d4cafb4a12a",
      "personAssistingStaffId": "526670af-acd8-401e-bc64-6d4cafb4a12a",
      "originatingStaffId": "526670af-acd8-401e-bc64-6d4cafb4a12a",
      "supervisorStaffId": "526670af-acd8-401e-bc64-6d4cafb4a12a",
      "clientCode": "Client A",
      "branchId": "c85d28cb-a760-4627-aa59-0a853c2e65ed",
      "branchProviderId": "c85d28cb-a760-4627-aa59-0a853c2e65ed",
      "clientRole": "Buyer",
      "isLead": false,
      "clientIds": [
          "5bc557e8-2a14-4c23-8d35-4f0fd1bff40e"
      ],
      "otherSideIds": [
          "9aec5a99-be4d-441a-80c3-21dcb549dd5a"
      ],
      "items": {
        "vendors": [
          {
            "id": "5c65358d-1502-463c-9464-f36f21c7e610",
            "contact": {
              "id": "ec499947-9d3d-442a-b431-05c8ee280687",
            },
            "subItems": {
              "solicitors": [
                {
                  "id": "4a31c76f-0952-4069-8259-840cd6106246",
                  "contact": {
                    "id": "MyFirm"
                  }
                }
              ],
              "relationshipDetails": [
                {
                  "id": "71b597c3-c1dd-4fe8-91c1-3c731a1e4394",
                }
              ]
            }
          }
        ]
      }
    }'

{
  "method": "PATCH",
  "url": "https://api.smokeball.com/matters/{matterId}",
  "headers": {
    "Content-Type": "application/json"
  },
  "body": {
      "externalSystemId": "EXT123",
      "number": "AM-API-001",
      "matterTypeId": "0623643a-48a4-41d7-8c91-d35915b291cd_NSW",
      "description": "Matter description",
      "status": "Open",
      "openedDate": "2022-04-23T14:00:00Z",
      "personResponsibleStaffId": "526670af-acd8-401e-bc64-6d4cafb4a12a",
      "personAssistingStaffId": "526670af-acd8-401e-bc64-6d4cafb4a12a",
      "originatingStaffId": "526670af-acd8-401e-bc64-6d4cafb4a12a",
      "supervisorStaffId": "526670af-acd8-401e-bc64-6d4cafb4a12a",
      "clientCode": "Client A",
      "branchId": "c85d28cb-a760-4627-aa59-0a853c2e65ed",
      "branchProviderId": "c85d28cb-a760-4627-aa59-0a853c2e65ed",
      "clientRole": "Buyer",
      "isLead": false,
      "clientIds": [
          "5bc557e8-2a14-4c23-8d35-4f0fd1bff40e"
      ],
      "otherSideIds": [
          "9aec5a99-be4d-441a-80c3-21dcb549dd5a"
      ],
      "items": {
        "vendors": [
          {
            "id": "5c65358d-1502-463c-9464-f36f21c7e610",
            "contact": {
              "id": "ec499947-9d3d-442a-b431-05c8ee280687",
            },
            "subItems": {
              "solicitors": [
                {
                  "id": "4a31c76f-0952-4069-8259-840cd6106246",
                  "contact": {
                    "id": "MyFirm"
                  }
                }
              ],
              "relationshipDetails": [
                {
                  "id": "71b597c3-c1dd-4fe8-91c1-3c731a1e4394",
                }
              ]
            }
          }
        ]
    }
  }
}

Response

HTTP/1.1 202 ACCEPTED
Content-Type: application/json

{
  "id": "51cefb72-6247-4ca2-8926-5d14d65f7cb9",
  "href": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9"
}

Rule and limitations

The endpoint supports the following actions:

Updating one or more supported properties (keeping in mind the other rules that follow).
Converting a lead to a matter - by setting isLead: true -> isLead: false.
Updating matterTypeId and clientRole when a lead is being converted to matter.
Updating the clients and/or other sides using the clientIds and otherSideIds properties.
Updating matter items of provider type role and layout using the items property.

The endpoint does not support the following actions:

Converting a Matter back to a Lead is not supported.
Updating matterTypeId and clientRole on matters or on leads that are not being converted to matter is not supported.
Updating items in a patch request where a lead is being converted to a matter is not supported.
Updating items in a patch request where clients and/or other sides are being patched via clientIds and otherSideIds properties is not supported.
Updating matter items of provider type other than role or layout is not supported.
Removing all items of a type is not supported.

How updating items works:

If the items property is not passed in, they will be left unchanged.
There is no need to pass items of all types in a patch request.
If one of more items of a type are being added/updated in the patch request, we must include all relevant items under that type (i.e., including the ones that are unchanged) in order to preserve them. Any existing item that is not included will be removed.
The consumer cannot update the name on an item, e.g., the Vendor name.
Contact Id must be provided when adding/update Items of role provider type.
A new item/sub item of a ‘type’ can only be added if there is an existing item/sub item of that type already present in the lead/matter.

Also see examples in the usage scenarios section below.

Usage scenarios

Common scenarios are described below with clear examples.

Patch request to update the status and description

{
    "status": "Closed",
    "description": "Hectic Matter updated"
}

Patch request to convert lead to matter

{
    "matterTypeId": "16052e57-8a05-44ca-b22f-4adf96132095_NSW",
    "clientRole": "Client",
    "isLead": false
}

Patch request to update the client

There are 2 ways we could do this. The first is to simply set the clientIds property, like so:

{
    "clientIds": [
      "9aec5a99-be4d-441a-80c3-21dcb549dd5a"
    ],
}

Alternatively, we can update the client in the items property, like so:

{
  "items": {
    "purchasers": [
      {
        "id": "f794090d-183e-462a-9654-930d64a5f882",
        // Contact Id can be provided in one of two ways:
        // Option 1:
        "contactId": "71b597c3-c1dd-4fe8-91c1-3c731a1e4394",
        // Option 2:
        "contact": {
            "id": "71b597c3-c1dd-4fe8-91c1-3c731a1e4394",
        }
        // Note: As subitems are omitted here, they will not be updated
      }
    ]
  }
}

Patch request to add a new client/item

There are 2 ways we could do this. The first is to simply set the clientIds property, like so:

{
    "clientIds": [
      // Existing client must be provided here or it will be registered as a removal
      "9aec5a99-be4d-441a-80c3-21dcb549dd5a", // Existing client
      "728cb5aa-a9d2-46e5-b75a-149f6c4fae0b" // New client
    ],
}

Alternatively, we can add the role in the items property, like so:

{
  "items": {
    "vendors": [
      // The existing vendors must be here or it will be registered as a removal
      {
        "id": "5c65358d-1502-463c-9464-f36f21c7e610",
        "contactId": "9aec5a99-be4d-441a-80c3-21dcb549dd5a"
      },
      {
        // Id is not required here if there is no existing vendors role item available
        // Id must be provided if the contact is being assigned to an existing role item
        "contactId": "728cb5aa-a9d2-46e5-b75a-149f6c4fae0b"
      }
    ]
  }
}

Patch request to remove a client/item

There are 2 ways we could do this. The first is to simply set the clientIds property where the missing items are removed, like so:

{
    // Assuming there were two clients here:
    // This patch request will remove the client who's Id was omitted here
    "clientIds": [
      "728cb5aa-a9d2-46e5-b75a-149f6c4fae0b"
    ],
}

The client/item we are removing is omitted from the payload:

{
  "items": {
    // Assuming there were two vendors here:
    // This patch request will remove the vendor item that was omitted
    "vendors": [
      {
        "id": "5c65358d-1502-463c-9464-f36f21c7e610",
        "contactId": "9aec5a99-be4d-441a-80c3-21dcb549dd5a"
      }
    ]
  }
}

Patch request to update contact id on an existing item

{
  "items": {
    "purchasers": [
      {
        "id": "5c65358d-1502-463c-9464-f36f21c7e610",
        "contactId": "c555185b-4062-4e74-9ecf-f0b87dd4ee79",
        // Contact Id can also be set this way (as mentioned in a previous example)
        "contact": {
            "id": "c555185b-4062-4e74-9ecf-f0b87dd4ee79",
        },
        "subItems": {
            "Solicitor": [
                {
                    "id": "e46248a6-f71a-4991-b791-9f03e402a937",
                    // Contact Id also updated for sub item here
                    "contact": {
                        "id": "9aec5a99-be4d-441a-80c3-21dcb549dd5a"
                    }
                }
            ]
        }
      }
    ]
  }
}

Patch request to add a new layout item

{
  "items": {
        "Client": [
            {
                "id": "32663bf8-7e12-4b34-8ea4-596ff9350d2d",
                "contact": {
                    "id": "77b73607-761a-43a0-bdaa-a43e4568011d"
                },
                "subItems": {
                    "Details": [
                        {
                            "id": "5dd582e1-222b-4cf1-b0d7-1daf70d3627a"
                        },
                        // New `Details` sub item added here
                        {
                        }
                    ]
                }
            }
        ],
        "Case Details": [
            {
                "id": "52f51059-2a0c-4b5e-a86d-55bf5638a10d"
            },
            // New 'Case details' item added here
            {
            }
        ]
    }
}

Patch request to remove an existing layout item

{
  "items": {

        // Assuming there were two Case Details layout items:
        // This patch request will remove the one that was omitted
        "Case Details": [
            {
                "id": "52f51059-2a0c-4b5e-a86d-55bf5638a10d"
            }
        ]
    }
}

Documentation

Tutorials

APIs

Matter Types

Getting a Matter Type

Contacts

Creating contacts

Tip

Staff

Creating a matter

Retrieving matters

Retrieving a matter

Retrieving multiple matters

Matter Items

Roles and Relationships

Layouts

Roles

Setting a Role

Updating a matter

Using PUT endpoint

Using PATCH endpoint

Rule and limitations

Usage scenarios

Patch request to update the status and description

Patch request to convert lead to matter

Patch request to update the client

Patch request to add a new client/item

Patch request to remove a client/item

Patch request to update contact id on an existing item

Patch request to add a new layout item

Patch request to remove an existing layout item

​Matter Types

​Getting a Matter Type

​Contacts

​Creating contacts

​Tip

​Staff

​Creating a matter

​Retrieving matters

​Retrieving a matter

​Retrieving multiple matters

​Matter Items

​Roles and Relationships

​Layouts

​Roles

​Setting a Role

​Updating a matter

​Using PUT endpoint

​Using PATCH endpoint

​Rule and limitations

​Usage scenarios

Patch request to update the status and description

Patch request to convert lead to matter

Patch request to update the client

Patch request to add a new client/item

Patch request to remove a client/item

Patch request to update contact id on an existing item

Patch request to add a new layout item

Patch request to remove an existing layout item

Matter Types

Getting a Matter Type

Contacts

Creating contacts

Tip

Staff

Creating a matter

Retrieving matters

Retrieving a matter

Retrieving multiple matters

Matter Items

Roles and Relationships

Layouts

Roles

Setting a Role

Updating a matter

Using PUT endpoint

Using PATCH endpoint

Rule and limitations

Usage scenarios
