Layouts

For context on how layouts fit within matters, see Matters documentation.

Layouts are User Interfaces that look different from each other, and are designed for a specific/unique purpose. They are designed and maintained by our product team. Each user interface has different fields pertinent to their unique purpose.

For example, we have a Property Details Layout for Conveyancing Matter Types:

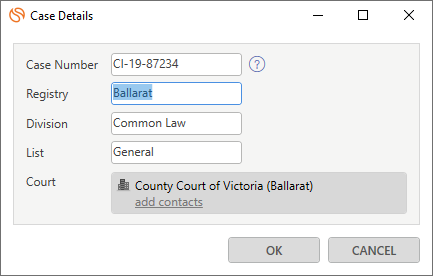

Or, Case Details Layout for some Litigation Matter Types:

Data Mapping

How to get a list of layout fields that you can set up a mapping for:

1. Get a reference for the layout design ID by querying a matter type.

GET https://api.smokeball.com.au/mattertypes/{matterTypeId}

Example response:

{

  "href": "https://api.smokeball.com.au/mattertypes/9c6f59b6-3871-4fbd-a508-8fc43f03c6b4",

  "items": [
    {
      "href": "https://api.smokeball.com.au/layouts/b571beb4-9175-436c-a70e-e70acb0f4ed2",
      "rel": "layouts",
      "id": "b571beb4-9175-436c-a70e-e70acb0f4ed2",
      "providerId": "LayoutProvider",
      "name": "Workers Comp Details"
    }
  ],
  "id": "9c6f59b6-3871-4fbd-a508-8fc43f03c6b4",
  "versionId": "1bd57eaa-089c-4a92-8136-aed74bf5c389",
  "name": "Workers Compensation",
  "category": "Personal Injury",
  "representativeOptions": [
    "Worker",
    "Employer"
  ],
  "location": "NSW"
}

In this example, /items/0/id contains the layout design ID and /items/0/href contains a full URL to use in the next step.

2. Retrieve the full list of fields for the given layout design.

GET https://api.smokeball.com/layouts/{layoutDesignId}

Example response:

{
  "id": "b571beb4-9175-436c-a70e-e70acb0f4ed2",
  "href": "https://api.smokeball.com.au/layouts/b571beb4-9175-436c-a70e-e70acb0f4ed2",
  "fields": [
    {
      "name": "Matter/WorkersCompDetails/BodyPartInjured",
      "type": "Text"
    },
    {
      "name": "Matter/WorkersCompDetails/DateOfInjury",
      "type": "DateTime"
    },
    {
      "name": "Matter/WorkersCompDetails/DescriptionOfInjury",
      "type": "Text"
    }
  ],
  "name": "Workers Comp Details"
}

In this example, /fields/*/name contain the layout fields that you can set up a mapping for.

Working with Layout Data

Once you’ve discovered the available layout designs, you can retrieve, create, update, and delete actual layout data on matters.

Retrieving All Layouts on a Matter

Get all layout items that exist on a matter, including both top-level layouts and sub-items.

curl

curl --request GET "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts" \
    --header "x-api-key: Y2xpZW50X2lkOmNsaWV" \
    --header "Authorization: Bearer Y2xpZW50X2lkOmNsaWV"

{
  "method": "get",
  "url": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts"
}

Example response:

HTTP/1.1 200 OK
Content-Type: application/json

{
  "items": [
    {
      "id": "a1b2c3d4-1234-5678-9abc-def012345678",
      "href": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts/a1b2c3d4-1234-5678-9abc-def012345678",
      "itemId": "a1b2c3d4-1234-5678-9abc-def012345678",
      "index": 0,
      "parentItemId": null,
      "layoutDesign": {
        "id": "b571beb4-9175-436c-a70e-e70acb0f4ed2",
        "href": "https://api.smokeball.com/layouts/b571beb4-9175-436c-a70e-e70acb0f4ed2",
        "rel": "Layouts",
        "name": "Workers Comp Details"
      },
      "values": [
        {
          "key": "Matter/WorkersCompDetails/BodyPartInjured",
          "value": "Lower back"
        },
        {
          "key": "Matter/WorkersCompDetails/DateOfInjury",
          "value": "2024-06-15T14:30:00.0000000Z"
        }
      ]
    },
    {
      "id": "e5f6g7h8-5678-9012-3def-456789012345",
      "href": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts/e5f6g7h8-5678-9012-3def-456789012345",
      "itemId": "e5f6g7h8-5678-9012-3def-456789012345",
      "index": 0,
      "parentItemId": "d9e8f7a6-4321-8765-bcde-f123456789ab",
      "layoutDesign": {
        "id": "c8d9e0f1-2345-6789-0abc-123456789def",
        "href": "https://api.smokeball.com/layouts/c8d9e0f1-2345-6789-0abc-123456789def",
        "rel": "Layouts",
        "name": "Loan Details"
      },
      "values": []
    }
  ]
}

• Top-level layouts have parentItemId: null (e.g., Workers Comp Details)
• Sub-item layouts have a parentItemId referencing their parent layout (e.g., Loan Details under a Lender contact)

Retrieving a Specific Layout Item

Get detailed information about a single layout item, including all its field values.

curl

curl --request GET "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts/a1b2c3d4-1234-5678-9abc-def012345678" \
    --header "x-api-key: Y2xpZW50X2lkOmNsaWV" \
    --header "Authorization: Bearer Y2xpZW50X2lkOmNsaWV"

{
  "method": "get",
  "url": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts/a1b2c3d4-1234-5678-9abc-def012345678"
}

Example response:

HTTP/1.1 200 OK
Content-Type: application/json

{
  "id": "a1b2c3d4-1234-5678-9abc-def012345678",
  "href": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts/a1b2c3d4-1234-5678-9abc-def012345678",
  "itemId": "a1b2c3d4-1234-5678-9abc-def012345678",
  "index": 0,
  "parentItemId": null,
  "layoutDesign": {
    "id": "b571beb4-9175-436c-a70e-e70acb0f4ed2",
    "href": "https://api.smokeball.com/layouts/b571beb4-9175-436c-a70e-e70acb0f4ed2",
    "rel": "Layouts"
  },
  "values": [
    {
      "key": "Matter/WorkersCompDetails/BodyPartInjured",
      "value": "Lower back"
    },
    {
      "key": "Matter/WorkersCompDetails/DateOfInjury",
      "value": "2024-06-15T14:30:00.0000000Z"
    },
    {
      "key": "Matter/WorkersCompDetails/DescriptionOfInjury",
      "value": "Injury occurred while lifting heavy equipment"
    }
  ]
}

Creating Layout Items

Add new layout data to a matter. This operation is asynchronous and returns a 202 Accepted response.

Adding a Top-Level Layout

Create a new layout item at the matter level with initial field values.

curl

curl --request POST "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts" \
    --header "x-api-key: Y2xpZW50X2lkOmNsaWV" \
    --header "Authorization: Bearer Y2xpZW50X2lkOmNsaWV" \
    --header "Content-Type: application/json" \
    --data-raw '{
        "layoutDesignId": "b571beb4-9175-436c-a70e-e70acb0f4ed2",
        "values": [
            {
                "key": "Matter/WorkersCompDetails/BodyPartInjured",
                "value": "Lower back"
            },
            {
                "key": "Matter/WorkersCompDetails/DateOfInjury",
                "value": "2024-06-15T14:30:00.0000000Z"
            }
        ]
    }'

{
  "method": "post",
  "url": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts",
  "headers": {
    "Content-Type": "application/json"
  },
  "body": {
    "layoutDesignId": "b571beb4-9175-436c-a70e-e70acb0f4ed2",
    "values": [
      {
        "key": "Matter/WorkersCompDetails/BodyPartInjured",
        "value": "Lower back"
      },
      {
        "key": "Matter/WorkersCompDetails/DateOfInjury",
        "value": "2024-06-15T14:30:00.0000000Z"
      }
    ]
  }
}

Example response:

HTTP/1.1 202 Accepted
Content-Type: application/json

{
  "href": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts/a1b2c3d4-1234-5678-9abc-def012345678",
  "rel": "Layouts"
}

Adding a Sub-Layout Item

Create a nested layout item under a parent layout by including the parentItemId.

curl

curl --request POST "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts" \
    --header "x-api-key: Y2xpZW50X2lkOmNsaWV" \
    --header "Authorization: Bearer Y2xpZW50X2lkOmNsaWV" \
    --header "Content-Type: application/json" \
    --data-raw '{
        "layoutDesignId": "c8d9e0f1-2345-6789-0abc-123456789def",
        "parentItemId": "d9e8f7a6-4321-8765-bcde-f123456789ab",
        "values": [
            {
                "key": "Matter/LoanDetails/LoanAmount",
                "value": "350000.00"
            },
            {
                "key": "Matter/LoanDetails/InterestRate",
                "value": "5.25"
            }
        ]
    }'

{
  "method": "post",
  "url": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts",
  "headers": {
    "Content-Type": "application/json"
  },
  "body": {
    "layoutDesignId": "c8d9e0f1-2345-6789-0abc-123456789def",
    "parentItemId": "d9e8f7a6-4321-8765-bcde-f123456789ab",
    "values": [
      {
        "key": "Matter/LoanDetails/LoanAmount",
        "value": "350000.00"
      },
      {
        "key": "Matter/LoanDetails/InterestRate",
        "value": "5.25"
      }
    ]
  }
}

Understanding Async Operations

Layout creation and update operations are asynchronous and return a 202 Accepted response with a link to the resource being created or updated.

Best Practices:

• Use the returned href to verify the operation completed successfully
• Implement retry logic for failed requests
• Consider using webhooks for completion notifications instead of polling
• Handle 503 Service Unavailable responses with exponential backoff

Updating Layout Data

Update field values on an existing layout item. This is a partial update operation - only the fields you specify will be changed.

curl

curl --request PATCH "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts/60efd655-cd1a-42cd-a170-a228cc09b5b1" \
    --header "x-api-key: Y2xpZW50X2lkOmNsaWV" \
    --header "Authorization: Bearer Y2xpZW50X2lkOmNsaWV" \
    --header "Content-Type: application/json" \
    --data-raw '{
        "values": [
            {
                "key": "Matter/SettlementNegotiations/SettlementNegotiationsDetails/Note",
                "value": "Updated settlement offer received"
            },
            {
                "key": "Matter/SettlementNegotiations/SettlementNegotiationsDetails/OfferDate",
                "value": "2024-07-20T09:15:00.0000000Z"
            }
        ]
    }'

{
  "method": "patch",
  "url": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts/60efd655-cd1a-42cd-a170-a228cc09b5b1",
  "headers": {
    "Content-Type": "application/json"
  },
  "body": {
    "values": [
      {
        "key": "Matter/SettlementNegotiations/SettlementNegotiationsDetails/Note",
        "value": "Updated settlement offer received"
      },
      {
        "key": "Matter/SettlementNegotiations/SettlementNegotiationsDetails/OfferDate",
        "value": "2024-07-20T09:15:00.0000000Z"
      }
    ]
  }
}

Example response:

HTTP/1.1 202 Accepted
Content-Type: application/json

{
  "href": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts/60efd655-cd1a-42cd-a170-a228cc09b5b1",
  "rel": "Layouts"
}

The PATCH operation merges your changes with existing data. Only include the fields you want to update - other fields remain unchanged.

Deleting Layout Items

Remove a layout item from a matter. This operation is asynchronous and cannot be undone via the API.

curl

curl --request DELETE "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts/a1b2c3d4-1234-5678-9abc-def012345678" \
    --header "x-api-key: Y2xpZW50X2lkOmNsaWV" \
    --header "Authorization: Bearer Y2xpZW50X2lkOmNsaWV"

{
  "method": "delete",
  "url": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts/a1b2c3d4-1234-5678-9abc-def012345678"
}

Example response:

HTTP/1.1 202 Accepted

Important considerations:

• Deletion is asynchronous (202 response)
• Deleting a parent layout may impact sub-items
• Deleted layouts cannot be recovered via the API

Field Type Reference

Each layout field has a specific type that determines how values should be formatted. Always retrieve the layout design first to understand field types before setting values.

Text Fields

Simple string values for text-based fields.

Example:

{
  "key": "Matter/WorkersCompDetails/DescriptionOfInjury",
  "value": "Injury occurred while lifting heavy equipment"
}

DateTime Fields

Date and time values must use ISO 8601 format in UTC timezone.

Format: YYYY-MM-DD

Example:

{
  "key": "Matter/WorkersCompDetails/DateOfInjury",
  "value": "2024-06-15"
}

Combobox Fields

Combobox fields must use a value from the predefined possibleValues list in the layout design.

Two-step process:

1. Get the layout design to see allowed values:

{
  "name": "Matter/PropertyDetails/PropertyType",
  "type": "Combobox",
  "possibleValues": [
    "Residence",
    "Commercial",
    "Factory",
    "Office"
  ]
}

2. Use one of the allowed values:

{
  "key": "Matter/PropertyDetails/PropertyType",
  "value": "Residence"
}

Values are case-sensitive and must exactly match one of the possibleValues. Using an invalid value will result in a validation error.

Checkbox Fields

Boolean values represented as strings.

Allowed values: "true" or "false"

Example:

{
  "key": "Matter/CaseDetails/IsRushOrder",
  "value": "true"
}

{
  "key": "Matter/PropertyDetails/RequiresNotarization",
  "value": "false"
}

Number Fields

Numeric values represented as strings.

Examples:

{
  "key": "Matter/SettlementNegotiations/ClaimAmount",
  "value": "125000.50"
}

{
  "key": "Matter/PropertyDetails/NumberOfBedrooms",
  "value": "3"
}

Working with Contacts on Layouts

Associate contacts with specific layout items (e.g., linking a lender contact to a loan details layout).

Getting Contacts on a Layout

Retrieve all contacts associated with a layout item.

curl

curl --request GET "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts/e5f6g7h8-5678-9012-3def-456789012345/contacts" \
    --header "x-api-key: Y2xpZW50X2lkOmNsaWV" \
    --header "Authorization: Bearer Y2xpZW50X2lkOmNsaWV"

{
  "method": "get",
  "url": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts/e5f6g7h8-5678-9012-3def-456789012345/contacts"
}

Example response:

HTTP/1.1 200 OK
Content-Type: application/json

[
  {
    "contactId": "1a2b3c4d-5678-90ab-cdef-123456789012",
    "key": "Matter/LoanDetails/Lender",
  }
]

Adding Contacts to a Layout

Associate a contact with a layout item.

curl

curl --request POST "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts/e5f6g7h8-5678-9012-3def-456789012345/contacts" \
    --header "x-api-key: Y2xpZW50X2lkOmNsaWV" \
    --header "Authorization: Bearer Y2xpZW50X2lkOmNsaWV" \
    --header "Content-Type: application/json" \
    --data-raw '{
        "contactId": "1a2b3c4d-5678-90ab-cdef-123456789012",
        "key": "Matter/LoanDetails/Lender"
    }'

{
  "method": "post",
  "url": "https://api.smokeball.com/matters/51cefb72-6247-4ca2-8926-5d14d65f7cb9/layouts/e5f6g7h8-5678-9012-3def-456789012345/contacts",
  "headers": {
    "Content-Type": "application/json"
  },
  "body": {
    "contactId": "1a2b3c4d-5678-90ab-cdef-123456789012",
    "key": "Matter/LoanDetails/Lender"
  }
}

If the specified key already references a contact, remove the existing role or relationship manually before adding a new contact.

Common Patterns & Best Practices

End-to-End Workflow: Property Purchase

Complete example for creating and populating a Property Details layout in a conveyancing matter:

1. Find the matter type and layout design

GET /mattertypes/{matterTypeId}

2. Get field definitions from the layout design

GET /layouts/{layoutDesignId}

3. Create the layout with initial data

POST /matters/{matterId}/layouts
{
  "layoutDesignId": "property-details-layout-id",
  "values": [
    {
      "key": "Matter/PropertyDetails/Address",
      "value": "123 Main Street, Sydney NSW 2000"
    },
    {
      "key": "Matter/PropertyDetails/PropertyType",
      "value": "Residence"
    }
  ]
}

4. Update as information becomes available

PATCH /matters/{matterId}/layouts/{layoutItemId}
{
  "values": [
    {
      "key": "Matter/PropertyDetails/PurchasePrice",
      "value": "750000.00"
    },
    {
      "key": "Matter/PropertyDetails/SettlementDate",
      "value": "2024-09-30T14:00:00.0000000Z"
    }
  ]
}

Error Handling Strategies

Validate before sending:

• Check field types against layout design
• Validate DateTime format matches ISO 8601
• Confirm Combobox values are in possibleValues

Handle common errors:

• 400 Bad Request: Validation error - check field types and formats
• 404 Not Found: Layout design or matter doesn’t exist
• 503 Service Unavailable: Implement retry with exponential backoff

Use webhooks for async operations: Instead of polling the returned href, configure webhooks to receive notifications when operations complete.
